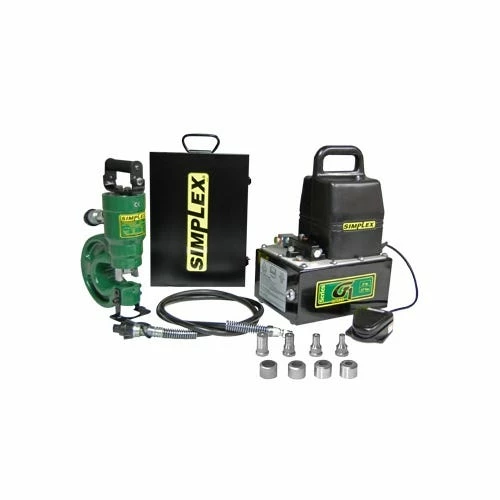

Simplex Punch 115V Pump Imperial Die Set Kit SPH35SPA-115

• Simplex
• Punch; 115V Pump; Imperial Die Set Kit SPH35SPA-115
• Industrial grade; single acting spring return design
• Punches holes in material up to 1/2 thick mild steel
• All models come equipped with a heavy duty steel case; providing tool and die organization along with ease of transport
• High flow female coupler included for quick setup
• Steel foot provides better stabilization for production punching
• Includes round punches and dies for 3/8″ (DS-44); 1/2″ (DS-56); 5/8″ (DS-69); 3/4″ (DS-81)
• Includes lightweight; compact; 2-speed G1 power pump equipped with a standard 15′ remote power controlled foot pedal and 6′ of industrial grade hose

Punch and Die Set	Hole Size	Bolt Size	Maximum Thickness A	B	C	D	E	F	G	H	I	J	K
DS-44	.44″	3/8″	.44″	.44″	.38″	.38″	.38″	.31″	.19″	.31″	.31″	.31″	.31″
DS-56	.56″	1/2″	.50″	.50″	.50″	.44″	.50″	.44″	.25″	.38″	.44″	.44″	.44″
DS-69	.69″	5/8″	.50″	.50″	.50″	.44″	.50″	.40″	.25″	.31″	.40″	.40″	.40″
DS-81	.81″	3/4″	.50″	.50″	.50″	.44″	.50″	.31″	.19″	.31″	.31″	.31″	.31″

A: Mild A-7
B: Boiler Plate
C: Structural A-36
D: Struc Corten (ASTM A242)
E: Cold Rolled C-1018
F: Hot Rolled C-1050
G: Hot Rolled C-1095
H: Hot Rolled C-1095 Annealed
I: Stainless Annealed
J: Stainless 304 Hot Rolled
K: Stainless 315 Hot Rolled
“
