RIDGID Tools RIDGID 975 Combo Roll Groover 25638

Ridgid

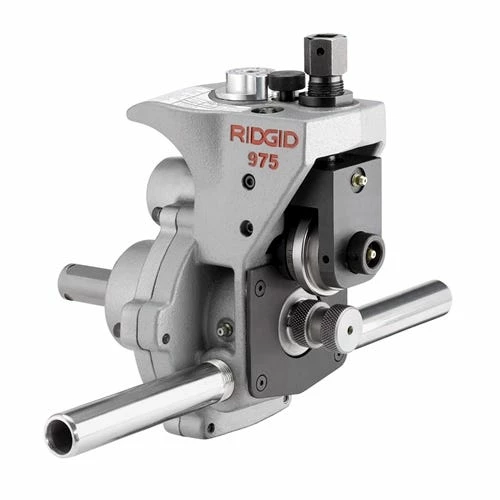

975 Combo Roll Groover

The Model 975 Combo Roll Groover is two tools in one. Like other RIDGID roll groovers; the 975 mounts on the RIDGID 300 Power Drive for machine-powered roll grooving jobs. It also designed to manually roll groove in-place pipe.

FEATURES:

• Auto Tracking & Depth Setting Gauge Means Easier Use – The 975 Combo Groover includes new; patented auto tracking technology for significantly easier grooving. Whether you’re doing machine-powered or manual grooving; the AutoTracking gauge keeps the pipe automatically engaged to the groover throughout the grooving process. The 975 also includes a permanently depth setting gauge for quicker; repeatable set-up.
• Less Hand Force Required – When manually roll grooving; the 975’s 55% higher gear reduction means less hand force required versus competitive manual roll groovers. This is especially helpful for over-head roll grooving.
• Durability And Portability – A tough; ductile iron construction means the 975 can absorb jobsite abuse and provide accurate grooves time after time. A cast-in handle makes the 975 easily portable to and from the jobsite.

SPECIFICATIONS:

Capacity	1 6 Schedule 10 and Schedule 40 steel; aluminum; and PVC pipe/ 1 1/4 6″ Schedule 10; 1 1/4″ 2″ Schedule 40 stainless steel pipe; 11/2″ 3″ Schedule 80 PVC pipe/ With roll change; 2″ 8″ copper tube (Type K; L; M; and DWV)
Depth Adjustment	Adjusting screw and integral; index depth gauge
Actuation	Feed screw with 1/2″ ratchet wrench (included); or any 15/16″ hex wrench
Power Drive Mounting	RIDGID 300 Power Drive 38/57 RPM (reverse direction only)

“
